What are Single Spring Mechanical Seals and Their Types?

Introduction

In the world of rotating equipment and pumping systems, mechanical seals play a vital role in ensuring leak-free and efficient operations. Among the various types, the Single Spring Mechanical Seal stands out for its simplicity, cost-effectiveness, and adaptability across numerous industrial applications. Whether you’re maintaining a small water pump or operating a high-speed centrifugal pump, understanding the mechanical seal single spring varieties and their installation process is essential for efficiency and durability.

In this blog, we’ll break down the types of single-spring mechanical seals, where they are used, how to install them, and what makes them unique in today’s demanding environments.

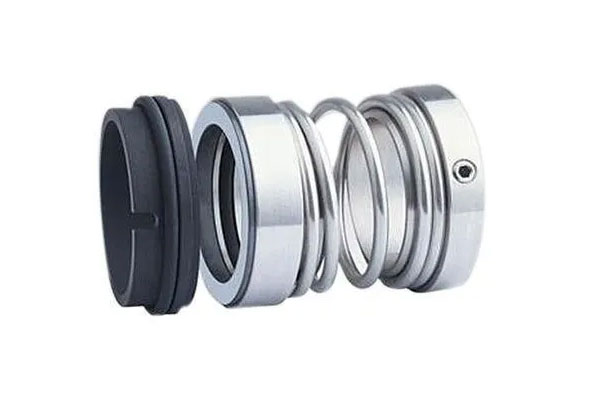

What is a Single Spring Mechanical Seal?

A Single Spring Mechanical Seal is a type of rotary shaft seal that uses a single coil spring to provide axial movement to the sealing faces, allowing compensation for wear and misalignment. These seals are used to prevent fluid leakage where the pump shaft passes through the pump housing.

Single-spring seals are compact, versatile, and ideal for a wide range of fluids and working conditions. They're typically found in clean water pumps, chemical processing equipment, HVAC systems, and agriculture-based machinery.

Why Choose Single Spring Seals?

Cost-Effective – Simple in design and manufacturing, reducing costs.
Easy to Install – Straightforward structure makes installation hassle-free.
Low Maintenance – Suitable for low to medium-pressure applications.
Versatile Applications – Works well in various industrial and domestic pumps.

Now let’s dive into the types of single spring mechanical seals you’ll encounter in practice.

Types of Single-Spring Mechanical Seals

1. Unbalanced Single Spring Mechanical Seal

One of the most commonly used types, the unbalanced single spring mechanical seal is perfect for low-pressure systems. These seals are economical, easy to handle, and effective in environments where leakage control is not overly critical.

Applications: Water transfer pumps, irrigation systems, low-viscosity liquids.

Materials: Ceramic, carbon, nitrile rubber (depending on the fluid).

Pros: Affordable and reliable for general-purpose usage.

Cons: Not suitable for high-pressure or highly abrasive fluids.

2. Balanced Single Spring Seal

Balanced single spring seals are designed to handle higher pressure systems compared to their unbalanced counterparts. The internal geometry allows the seal to endure more axial force, reducing face wear and extending seal life.

Applications: Chemical processing, high-speed centrifugal pumps.

Materials: Silicon carbide, Viton, stainless steel.

Pros: Better sealing at higher pressures, less heat generation.

Cons: Slightly more complex to install and expensive.

3. Single Spring Seal with Elastomer Bellows

This design integrates an elastomer bellow, which eliminates the need for a secondary dynamic O-ring. It's ideal for sealing services with slight shaft misalignment or minor shaft wear.

Applications: HVAC, cooling water systems, light chemicals.

Materials: EPDM, NBR, PTFE.

Pros: Self-aligning, good shaft adaptability.

Cons: Not suitable for very high temperatures.

4. Metal Bellow Single Spring Seal

A hybrid between a single spring and metal bellow design, this type can withstand aggressive media and fluctuating temperatures.

Applications: Oil refineries, gas plants, chemical processing.

Pros: No elastomer components—ideal for corrosive media.

Cons: Higher cost and complex maintenance.

5. Single Spring Seal with Stationary Design

In this variation, the spring is attached to the stationary part rather than rotating with the shaft. This is preferred in applications with shaft deflection or misalignment issues.

Applications: Slurry handling, abrasive fluids.

Pros: Less wear and vibration sensitivity.

Cons: Requires careful alignment during installation.

Single Spring Mechanical Seal Installation Tips

Proper single spring mechanical seal installation ensures a longer lifespan and optimal performance. Here are some quick tips:

• Always clean the shaft and seal housing before installation.
• Do not use excessive force to fit the seal; this may damage the sealing faces.
• Lubricate the elastomer lightly with a compatible lubricant.
• Align all components accurately, especially in balanced seal types.
• Follow manufacturer instructions for torque values and alignment settings.

A poor installation can lead to early seal failure, increased maintenance costs, and operational downtime.

When Should You Replace a Single Spring Seal?

Signs that you need pump seal replacement include:

Visible fluid leakage around the shaft.

Increased vibration or noise.

Shortened seal life despite low-duty operation.

Regular need for pump shutdown and seal adjustments.

How to Choose the Right Single Spring Seal?

Here are factors to consider when selecting a mechanical seal single spring:

Fluid Type: Choose materials compatible with the pumped medium.

Pressure & Temperature: Decide between balanced and unbalanced options.

Installation Space: Some seals require more axial space.

Seal Face Material: Choose from carbon, ceramic, silicon carbide, or tungsten carbide based on application.

Industry Standards: Ensure the seal complies with ISO or API norms if required.

Conclusion

Choosing the right type of single spring mechanical seal can significantly improve your pump’s efficiency, reduce maintenance, and prevent costly downtime. From unbalanced single spring mechanical seals for simple applications to balanced and elastomer bellow seals for high-performance environments, there’s a perfect fit for every need.

For assistance in selecting or installing the right mechanical seal for your pumps, contact QMSeals, your trusted expert in high-quality sealing solutions.

Frequently Asked Questions

1. What is a single spring mechanical seal?

A single spring mechanical seal is a type of seal that uses a single coil spring to apply pressure between sealing faces, preventing fluid leakage in rotating equipment.

2. What is the difference between balanced and unbalanced single spring seals?

Balanced seals can handle higher pressures, while unbalanced ones are cost-effective and suitable for low-pressure applications.

3. How do I install a single spring mechanical seal?

Clean the shaft, lubricate the elastomer, align components properly, and avoid excessive force during installation. Always follow manufacturer guidelines.

4. When should I replace a single spring mechanical seal?

Replace it when there’s visible leakage, vibration, reduced performance, or frequent pump downtime.

5. Which industries use single spring seals the most?

Industries like agriculture, HVAC, water treatment, and light chemical processing commonly use these seals due to their simplicity and efficiency.
