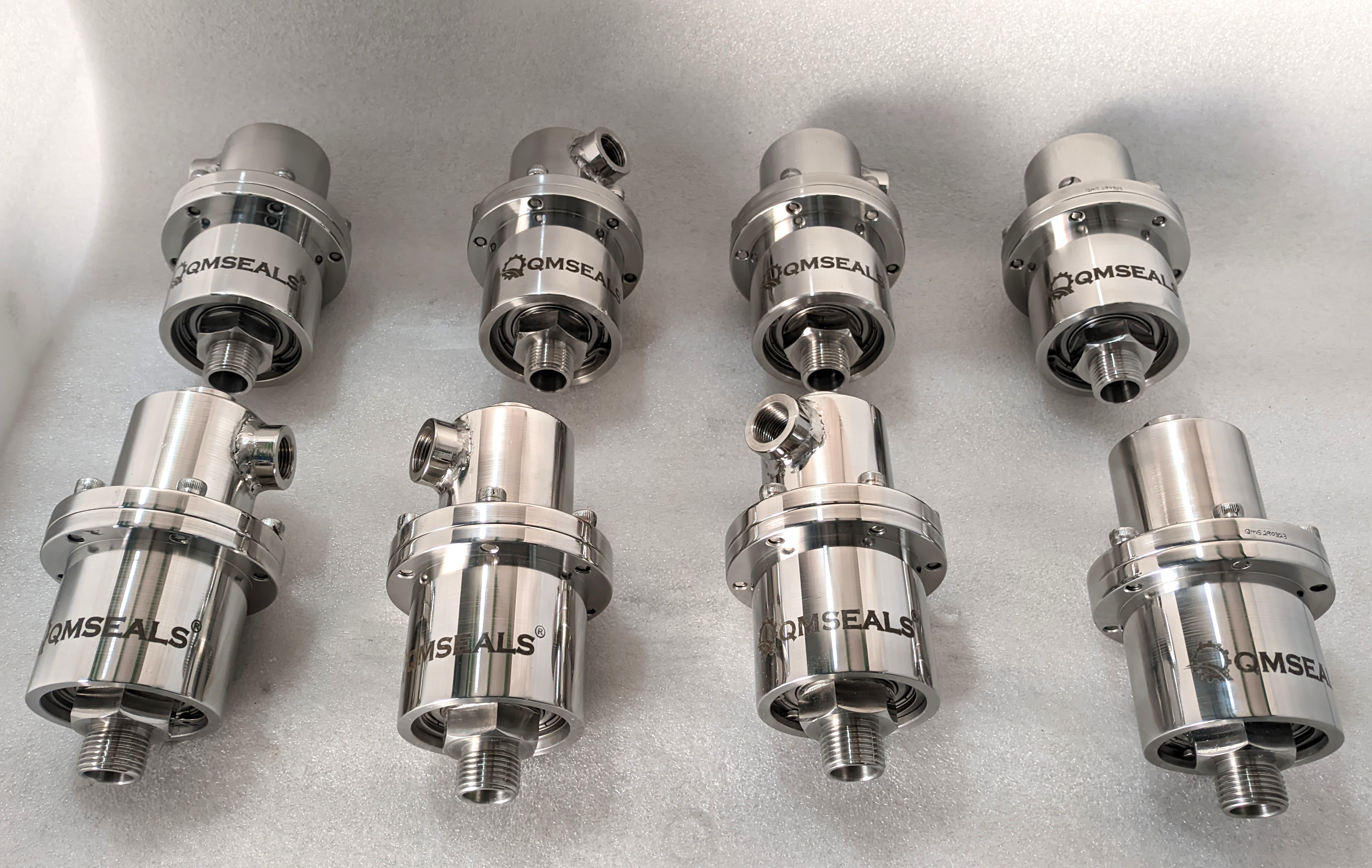

Industrial Rotary Joints Manufacturer
We are a manufacturer of rotary joints, with a wide range of products suitable for various applications. Our rotary joints are designed to provide leak-proof transfer or handling of steam, hydraulic fluids, child water, air, various oil, and gases to and from rotating machinery. These rotary joints, also known as Rotary Union & Roto Seal Coupling, are commonly used in industries such as Printing, Papers, Rubber, Food processing, Petrochemicals, Textile, Tyres, steel, etc.. We have been supplying our products to many countries, and our clients can trust us to provide high-quality and reliable rotary joints.

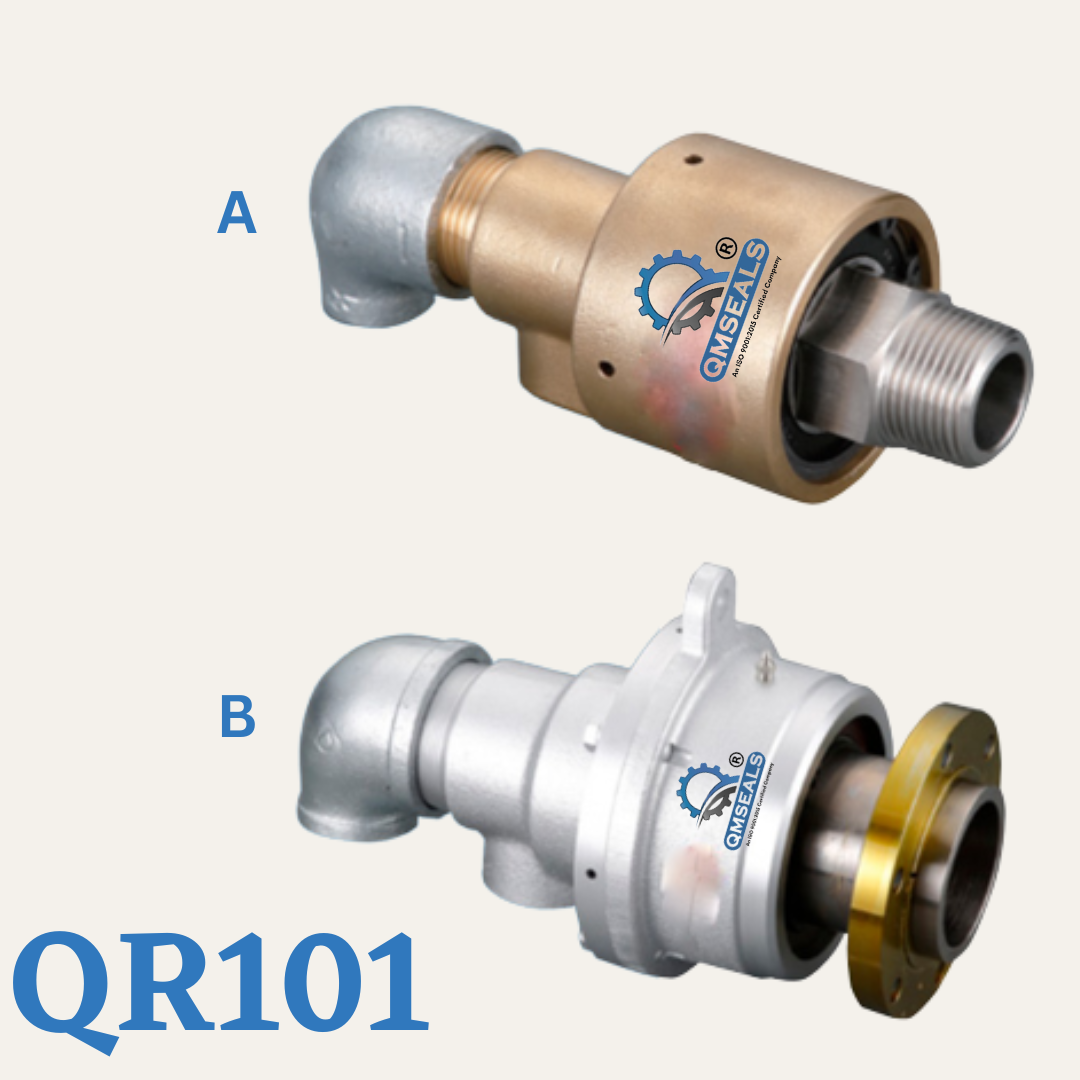

QR101 Series
Line:
QR101A
Fluid:
Water/Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
8A～25A | 2.25 | 3,500 | 100 |
32A,40A | 1.67 | 2,000 | |
50A～80A | 1.18 | 750 | |
QR101 Series
Line:
QR101B
Fluid:
Water/ Thermal Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
10A～25A | 2.25 | 3,500 | 150 |
32A,40A | 1.67 | 2,000 | |
50A～80A | 1.18 | 750 | |
QR101 Series
Line:
QR101C
Fluid:
Water/ Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
90A,100A | 0.98 | 500 | 100 |

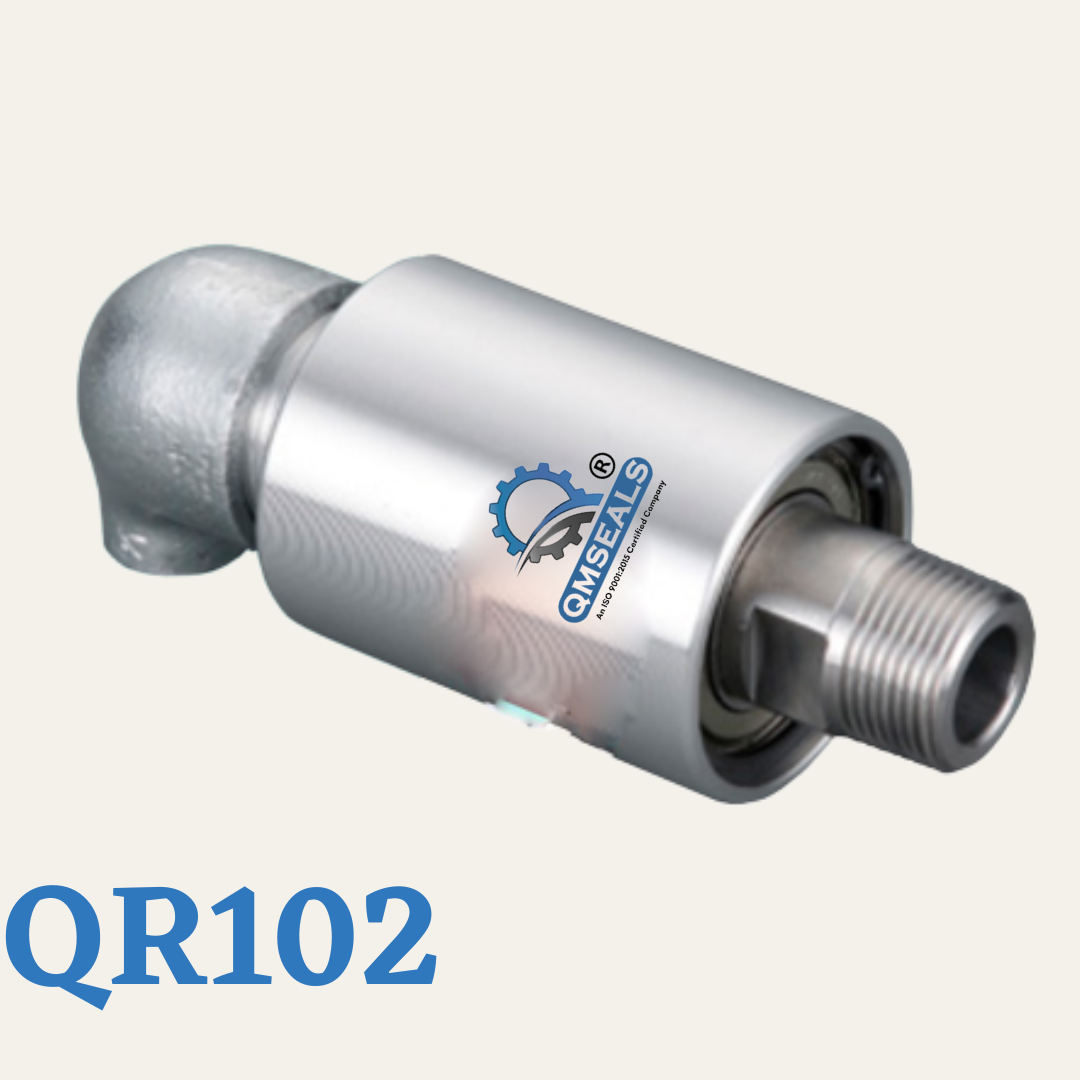

QR102 Series
Line:
-
Fluid:
Air/ Gas/ Water/ Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
6A～25A | 0.98 | 1,500 | 100 |
32A～65A | 1,000 | ||

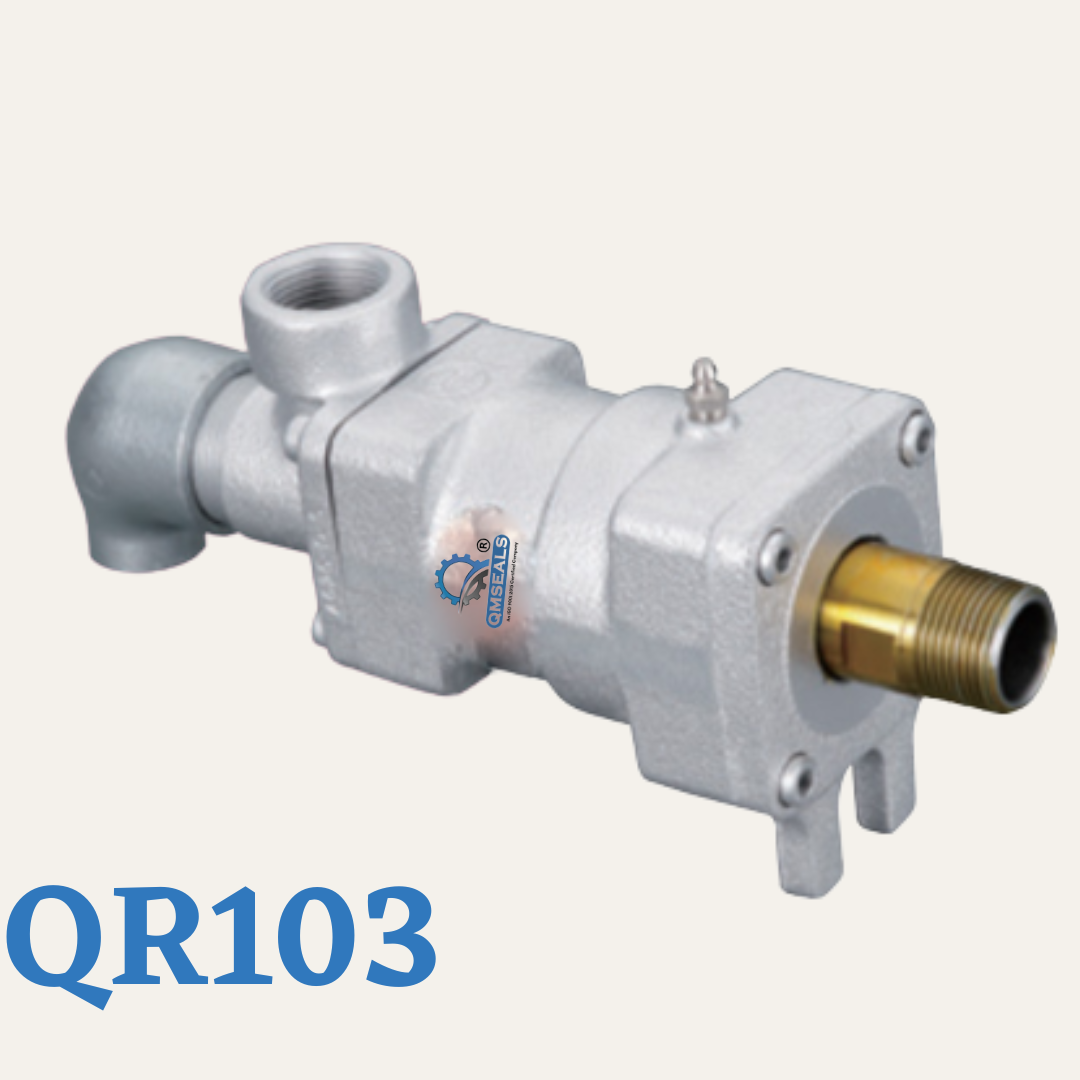

QR103 Series
Line:
-
Fluid:
Saturated Steam/ Thermal Oil/ Water/ Oil/ Air
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
10A～40A | 1.47 | 300 | 180 |
50A～80A | 150 | ||

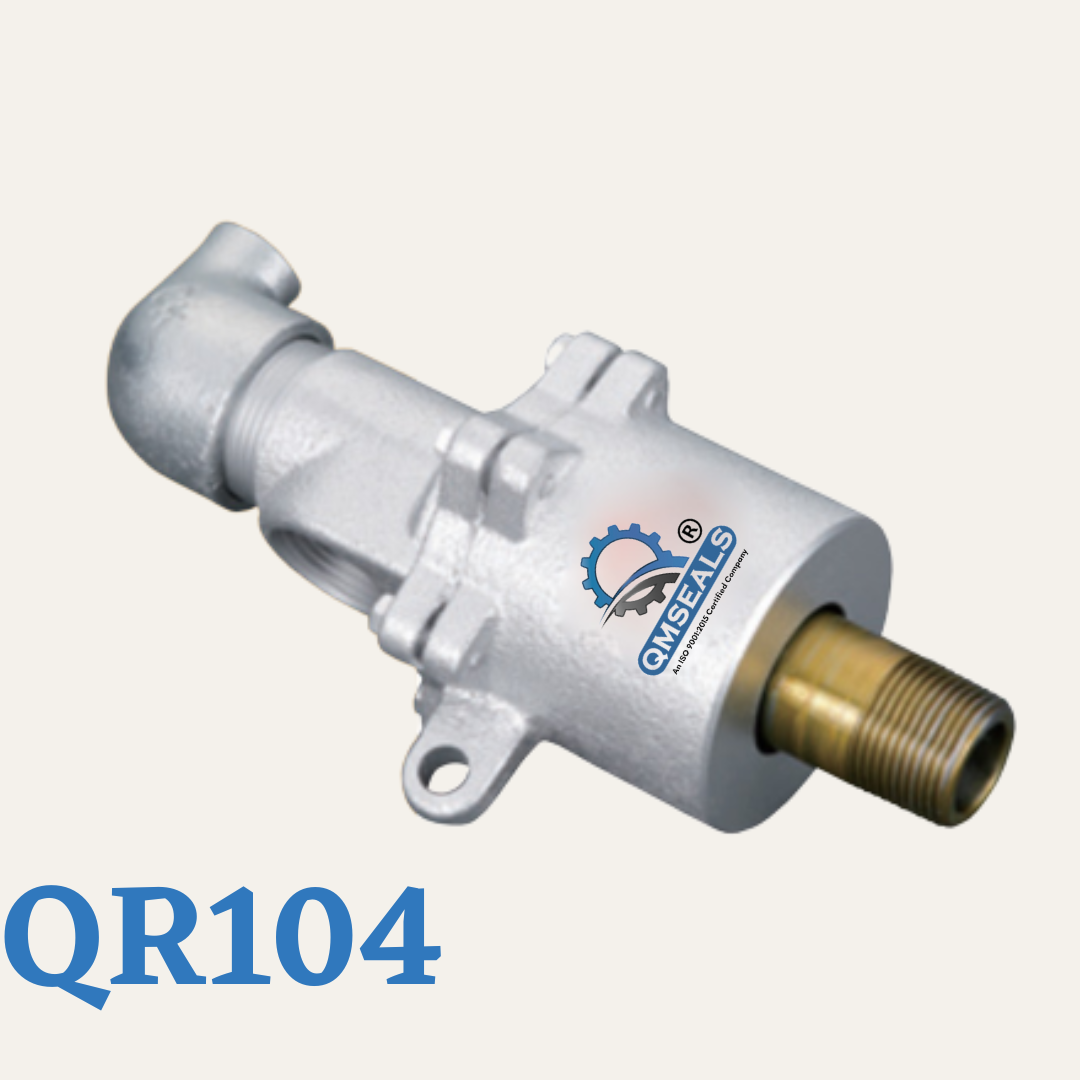

QR104 Series
Line:
-
Fluid:
Saturated Steam/ Thermal Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
15A～40A | 1.47 | 300 | 180 |
50A～80A | 100 | ||

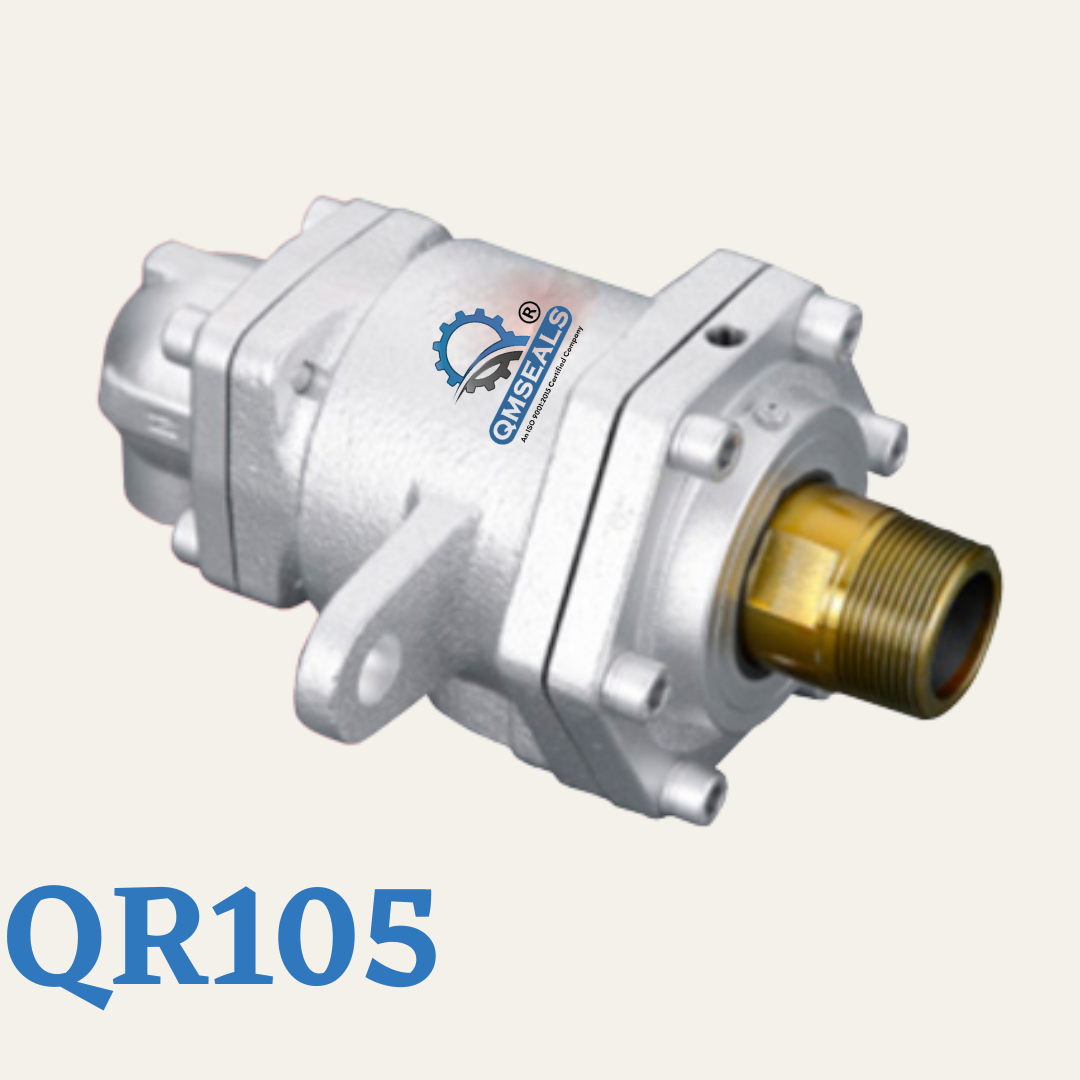

QR105 Series
Line:
QR105A Series
Fluid:
Saturated Steam
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
32A～65A | 1.5 | 150 | 200 |
QR105 Series
Line:
QR105B Series
Fluid:
Thermal Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
32A～65A | 1.0 | 150 | 280 |

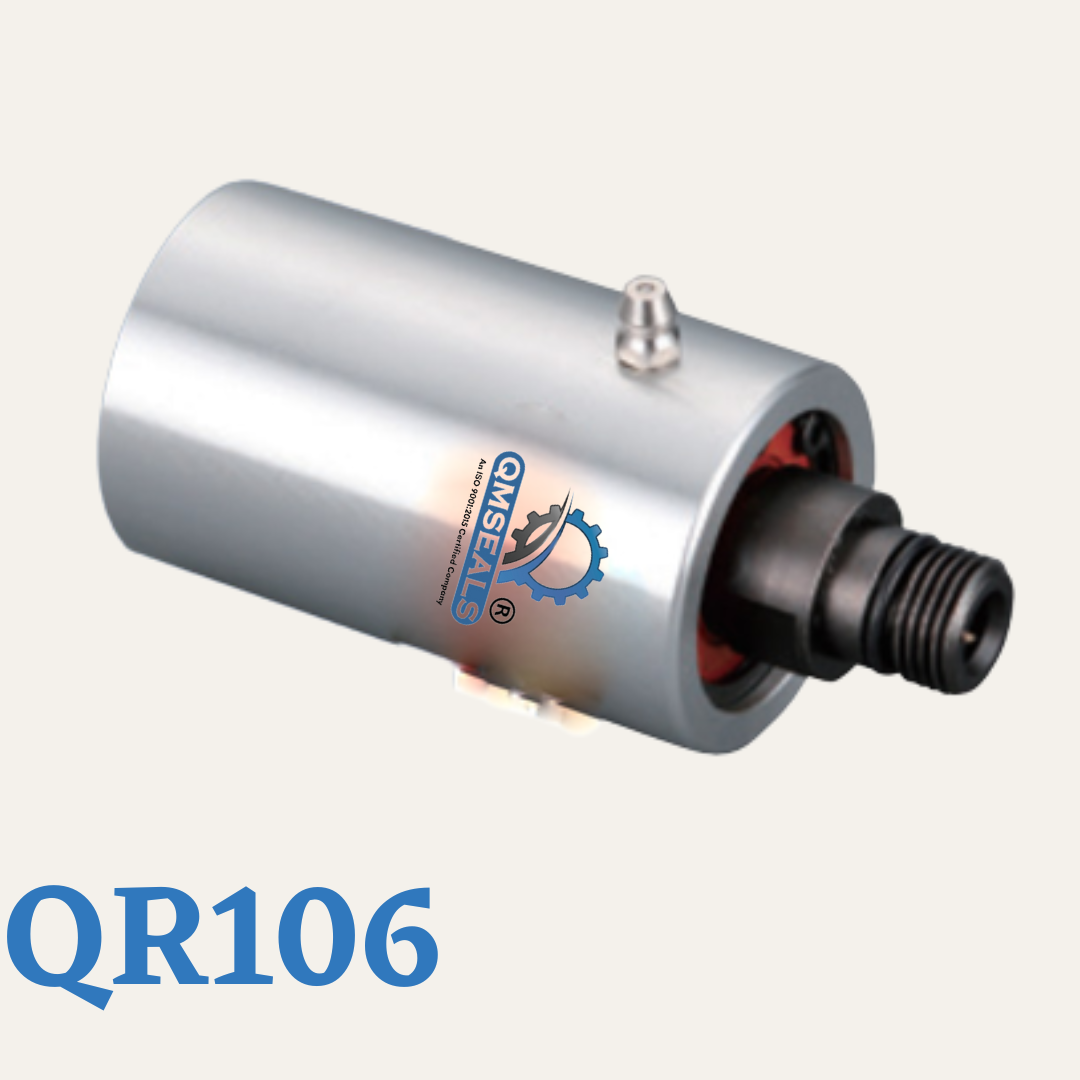

QR106 Series
Line:
-
Fluid:
Cutting Oil/ Water/ Oil
Size (Style) | Max. | ||
Pressure (MPa) | Rotation Speed(min-1) | Temperature (℃) | |
(90°) | 6.9 | 10,000 | 100 |
(Straight) | |||
(Compact) | 10.3 | 15,000 | 100 |
