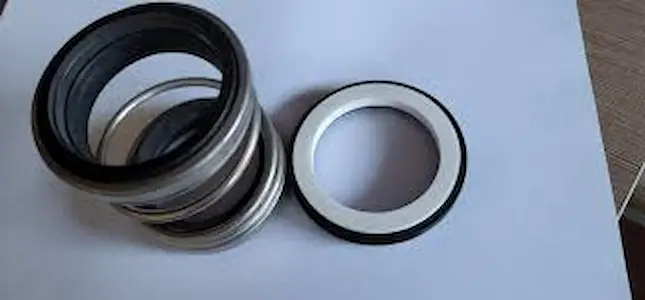

The Importance of Carbon in Mechanical Sealing

Introduction

At QMSeals, we understand that a seal is only as good as the materials it's made of. Among the various materials used in mechanical seal construction, carbon stands out as a top-performing and versatile option. Carbon’s unique physical and chemical properties make it essential in achieving long-lasting and leak-free sealing in pumps and rotating equipment.

This blog dives into the importance of carbon in mechanical sealing, how it works, where it’s used, and why industries across sectors trust carbon to keep their systems running efficiently.

Why Material Matters in Mechanical Seals

Mechanical seals are critical to preventing leakage between the rotating shaft and stationary pump casing. The core of every seal is the mating faces, typically a hard and a soft material combination.

This material pairing needs to withstand:

High rotational speeds

Friction and heat

Chemical corrosion

Varying pressure conditions

Carbon is usually selected as the softer, sacrificial seal face, paired with a hard material like silicon carbide or tungsten carbide to ensure a proper balance of strength and wear resistance.

Key Properties of Carbon in Seal Faces

1. Self-Lubricating Performance

One of carbon’s greatest advantages is its natural lubricity. Even during dry-running start-ups or minimal fluid film conditions, carbon reduces friction between seal faces and prevents heat build-up.

2. Chemical Resistance

Carbon is highly resistant to aggressive fluids — acids, solvents, fuels — making it an ideal sealing material in chemical, oil & gas, and pharmaceutical industries.

3. High Temperature Tolerance

Carbon seal materials can typically handle temperatures up to 300°C or more, making them reliable for high-heat applications in power plants, processing units, and reactors.

4. Low Thermal Expansion

Carbon's low thermal expansion means the seal faces remain flat and functional under thermal stress, preserving seal face integrity in both hot and cold environments.

5. Excellent Wear Resistance

Carbon’s wear resistance, especially when impregnated, ensures longer seal life, lower maintenance, and reduced downtime — all key performance indicators for industrial operations.

Types of Carbon Used in Mechanical Seals

There’s no one-size-fits-all when it comes to carbon. At QMSeals, we provide various carbon grades depending on your operational requirements:

Resin-Impregnated Carbon

Best for clean water and general-duty applications; offers low porosity and chemical resistance.

Metal-Impregnated Carbon

Used in high-speed or abrasive applications. Metals like copper or antimony improve thermal conductivity and strength.

Carbon-Graphite

Ideal for dry-running and chemically aggressive media. Offers exceptional lubrication and corrosion resistance.

Industries That Depend on Carbon Seal Faces

Carbon’s adaptability makes it a go-to material across several industries:

1. Oil & Gas: For high-temperature, high-pressure process pumps
2. Pharmaceuticals: In sterile, corrosive environments
3. Wastewater Treatment: For slurry, solids, and abrasive liquids
4. Food Processing: For hygienic and non-reactive sealing
5. Chemical Processing: Where seals must resist chemical attacks
6. Power Generation: Withstands thermal cycles and continuous operation

Why Carbon Is Paired with Hard Seal Materials

The best mechanical seals are engineered pairs. Carbon is often used against:

• Silicon Carbide (SiC): Extremely hard and wear-resistant; ideal for abrasives
• Tungsten Carbide (WC): High strength, good for high-pressure environments
• Ceramics: For light-duty or chemical-resistant sealing

Pairing carbon with a hard face provides:

• Lower friction
• Reduced face distortion
• Long-term sealing under harsh conditions

Common Issues with Carbon Seal Faces

While carbon offers numerous advantages, it does have limitations:

To address these issues, QMSeals only uses high-quality, impregnated carbon grades that are pre-engineered for each application.

Expert Tip from QMSeals

“When selecting a seal face, carbon’s grade and compatibility with your system’s temperature, pressure, and media are just as important as the design. Our team at QMSeals customizes carbon seal solutions to match every industrial scenario.”

Conclusion

Carbon remains one of the most reliable, versatile, and efficient sealing materials available. From high-temperature turbines to slurry pumps, its ability to self-lubricate, resist chemicals, and tolerate wear makes it irreplaceable in mechanical sealing systems.

At QMSeals, we engineer seals using premium carbon materials to ensure maximum uptime and performance for your rotating equipment.

Frequently Asked Questions

1. Why is carbon used in mechanical seals?

Carbon is used due to its excellent self-lubricating properties, chemical resistance, and ability to withstand high temperatures and wear. It helps maintain reliable sealing performance in demanding pump and rotating equipment applications.

2. What are the different types of carbon used in seal faces?

Common types include resin-impregnated carbon, metal-impregnated carbon (like antimony or copper), and carbon-graphite. Each type is selected based on factors like fluid type, operating temperature, and system pressure.

3. Can carbon seals be used in abrasive environments?

Yes, especially when paired with a hard face material like silicon carbide. Metal-impregnated carbon grades are ideal for resisting abrasion in slurry and wastewater applications.

4. What are the advantages of pairing carbon with hard materials like silicon carbide?

Pairing carbon with hard materials offers a balance of low friction, high wear resistance, and thermal stability. This combination helps extend seal life and maintain sealing under extreme conditions.

5. How do I choose the right carbon grade for my pump seal?

Choosing the right grade depends on your application's media, temperature, pressure, and shaft speed. At QMSeals, our experts assess your requirements and recommend the best carbon material for reliable, long-lasting performance.
