Lantern Ring – Purpose, Working & Applications in Pumps
A lantern ring is a perforated hollow ring fitted inside a pump's stuffing box. It lets flush water or lubricating fluid circulate around the shaft packing - cooling it, lubricating it, and keeping contaminants out. Without it, packing overheats and fails early.
What Is a Lantern Ring?

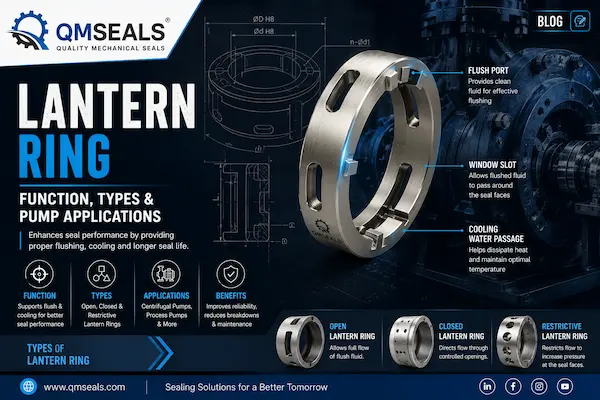

A lantern ring is a hollow, perforated ring positioned near the center of a pump's stuffing box, between the compression packing rings. Its perforations (holes or slots around its circumference) allow flush fluid to enter and spread evenly around the shaft.
It doesn't seal by itself. It supports the packing by managing fluid flow, heat, and contamination inside the stuffing box - making it one of the most underrated components in a packed pump assembly.
How Does a Lantern Ring Work in a Pump?
In a lantern ring pump setup, the ring sits between two sets of packing rings inside the stuffing box. An external flush line connects directly to the stuffing box at the lantern ring's position.
When the pump runs, flush water (or another barrier fluid) enters through that port, fills the ring's cavity, and distributes through the perforations in all directions around the shaft. This does three things simultaneously:
Cools the packing and shaft sleeve, preventing heat buildup from friction
Lubricates the packing rings, reducing wear and extending service life
Pressurizes the stuffing box slightly, blocking process fluid or abrasive particles from migrating inward
The result: longer packing life, reduced shaft sleeve wear, and a more stable seal overall.
Lantern Ring vs Standard Packing Ring
People often confuse the two - they look similar in cross-section but serve completely different roles.
| Feature | Lantern Ring | Packing Ring |
|---|---|---|
| Primary role | Fluid distribution | Sealing |
| Construction | Hollow, perforated | Solid braided/compressed |
| Position | Center of stuffing box | Around the lantern ring |
| Fluid contact | Flush/barrier fluid | Process fluid |
A pump lantern ring is always used alongside packing, never as a replacement for it. Remove the lantern ring and the flush fluid has nowhere to go - packing dries out, overheats, and fails within hours in demanding services.
Materials Used for Lantern Rings
Choosing the right material depends on operating temperature, fluid chemistry, and pressure. Here are the four most common options:
Brass - Standard choice for general industrial and water-service pumps. Affordable, easy to machine, good for moderate temperatures.
Stainless Steel (316L) - Used where corrosion resistance matters: chemical processing, seawater, food-grade, and sanitary applications.
PTFE - The most widely used material today. Chemically inert, FDA-compliant, handles temperatures from –180°C to +260°C. Ideal for chemical, pharmaceutical, and slurry pumps.
Carbon / Carbon-filled PTFE - Offers PTFE's chemical resistance with improved wear performance. Suited for high-speed shafts and abrasive service.
PEEK is also used in extreme high-temperature applications (above 260°C) where standard PTFE would soften and lose dimensional stability.
When Is a Pump Lantern Ring Required?
Not every stuffed pump needs one - but in these conditions, a pump lantern ring is essentially mandatory:
Abrasive or slurry fluids - Without a pressurized flush, solids migrate into the stuffing box and destroy packing within days.
High-temperature service - Boiler feed, condensate, and hot-oil pumps generate enough heat to carbonize dry packing. The lantern ring keeps flush flowing.
Toxic or hazardous process fluids - An external flush via the lantern ring creates a barrier that prevents process fluid from reaching atmosphere.
Vertical turbine pumps - Gravity-fed lubrication is unreliable; the lantern ring ensures consistent fluid delivery to the packing set.
Pumps on suction lift - When the stuffing box runs below atmospheric pressure, the lantern ring prevents air ingestion and cavitation at the seal.
If your pump handles clean, cool, non-hazardous fluid at low pressure, you may not need one. In any other scenario, skipping it is a false economy.
QMSEALS Lantern Ring Solutions
QMSEALS designs and manufactures pump lantern rings for centrifugal pumps, vertical turbine pumps, reciprocating pumps, and positive displacement equipment across industrial sectors worldwide.
What sets our lantern rings apart:
Custom-machined to your shaft dimensions - We work from your drawings or sample, with tolerances held to ±0.01 mm.
Full material range - Brass, 316L stainless steel, PTFE, carbon-filled PTFE, and PEEK available as standard.
Compatible with all major pump OEMs - Grundfos, KSB, Flowserve, Kirloskar, and more.
15+ years of manufacturing experience - Serving customers in Dubai, Vietnam, South Africa, and across Southeast Asia.
Global supply with fast lead times - Standard sizes ship within 5–7 working days; custom orders within 15 days.
Free installation support - Our technical team advises on correct positioning, flush line sizing, and packing selection at no extra cost.
Ready to source reliable pump lantern rings for your application? Request a Free Quote and our engineering team will respond within 24 hours.
Frequently Asked Questions
What Is the Purpose of a Lantern Ring in a Stuffing Box?
A lantern ring distributes flush or lubricating fluid evenly around the shaft packing inside the stuffing box. This keeps the packing cool, lubricated, and free from abrasive contamination - extending the life of both the packing and the shaft sleeve.
Where Is the Lantern Ring Positioned in a Pump?
The lantern ring sits near the center of the stuffing box, between the inner and outer sets of packing rings. Its position aligns with the flush port on the stuffing box body, so external fluid enters directly into the ring's cavity and distributes through its perforations.
What Materials Are Lantern Rings Made From?
The most common materials are PTFE, brass, stainless steel (316L), and carbon-filled PTFE. PTFE is the industry standard for most pump services due to its broad chemical resistance and wide temperature range. Stainless steel suits corrosive or high-pressure environments; brass works well in standard water-service applications.
Can QMSEALS Supply Custom Lantern Rings for My Pump?
Yes. QMSEALS manufactures custom pump lantern rings to exact shaft and stuffing box dimensions. Send us your shaft diameter, stuffing box bore, and material preference - or simply share your pump model - and we'll produce a matched set. We supply to customers globally, including the Middle East, Africa, and Southeast Asia.
