How Does a Seal Pot Work?

In many industrial applications, especially in pumps and rotating equipment, mechanical seals play a critical role in preventing leaks. However, in certain demanding environments where the process fluid is hazardous, hot, or prone to crystallization, a seal support system becomes essential. That’s where seal pots come into play. But what exactly is a seal pot, and how does it work?

What is a Seal Pot?

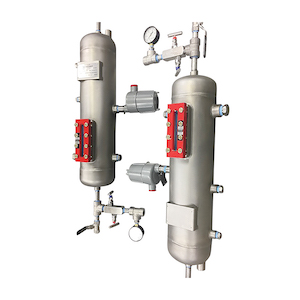

A seal pot, also known as a seal reservoir or API seal pot, is a component used in mechanical seal support systems to maintain and regulate the pressure and fluid around double mechanical seals. Its main function is to supply a clean barrier or buffer fluid to the seals, helping to prevent leakage, contamination, or overheating.

Seal Pot Working Principle

The seal pot working principle is relatively simple but effective. The pot stores a clean fluid (often water, oil, or a compatible chemical) that is circulated between the two faces of a double mechanical seal. This fluid helps lubricate the seal faces, maintain temperature, and prevent process fluid from entering the seal chamber.

There are typically two types of systems:

Thermosiphon Circulation: Uses natural convection to move fluid between the seal and the pot.

Forced Circulation: Employs a pump or pressure differential to move fluid actively.

The system may also include pressure gauges, level indicators, and cooling coils to monitor and control the seal environment more efficiently.

Why Use a Seal Pot?

Using a seal pot system offers several advantages:

Improved Seal Life– Continuous lubrication reduces friction and wear.
Enhanced Safety – Prevents hazardous fluids from leaking into the environment.
Reduced Maintenance – A well-managed seal flushing system can prevent deposits and clogging.
Thermal Regulation – Especially important in high-temperature applications.
Leak Control – Maintains correct pressure and prevents seal failures.

Industries That Use Seal Pots

Seal pots are widely used in:

• Petrochemical Plants
• Pharmaceutical Manufacturing
• Food & Beverage Processing
• Power Generation
• Pulp and Paper Industry

Any process that involves corrosive or dangerous fluids can benefit from a properly installed API seal pot system.

How to Maintain a Seal Pot System

Seal pot maintenance is essential for the best operation of your mechanical seal system. Here's what you need to do:

• Regularly check fluid levels.
• Inspect for any pressure drops or leaks.
• Clean the system to prevent blockages.
• Ensure the cooling system is functioning properly.

Conclusion

A seal pot is a vital part of any mechanical seal support system, especially when working with challenging industrial fluids. By understanding the seal pot working principle and maintaining it properly, you can greatly enhance the reliability of your equipment and reduce downtime.

If you're looking for high-quality seal pots and mechanical seal systems, feel free to connect with the experts at QMSeals – your trusted partner in sealing technology.

Frequently Asked Questions

1. What is a seal pot used for in mechanical seals?

A seal pot is used to store and circulate barrier or buffer fluid to lubricate and cool mechanical seals, especially in double seal arrangements.

2. How does a seal pot system work?

It works by maintaining a clean fluid supply to the mechanical seals via thermosiphon or forced circulation, ensuring lubrication and pressure balance.

3. Why is a seal pot important for pumps?

Seal pots help prevent leakage, regulate temperature, and extend seal life in pumps handling hazardous or high-temperature fluids.

4. What is the difference between a buffer fluid and a barrier fluid in a seal pot?

Barrier fluid is pressurized above the process pressure, while buffer fluid is below. Both aid in cooling and sealing but are used in different seal arrangements.

5. How do you maintain a seal pot?

Regular inspection of fluid levels, pressure, cooling efficiency, and system cleanliness ensures optimal performance and longevity.
