How Carbon Mechanical Seals Work: A Comprehensive Guide

Introduction

In the realm of industrial machinery, preventing fluid leakage is paramount. Carbon mechanical seals play a crucial role in achieving this by providing a reliable barrier between rotating shafts and stationary housings. This article delves into the intricacies of carbon mechanical seals, exploring their construction, working principles, applications, and advantages.

What Are Carbon Mechanical Seals?

Carbon mechanical seals are sealing devices designed to prevent the leakage of fluids in rotating equipment. They consist of two primary components:

Rotating Face: Attached to the rotating shaft, this face moves with the shaft's rotation.

Stationary Face: Fixed to the pump housing, this face remains stationary.

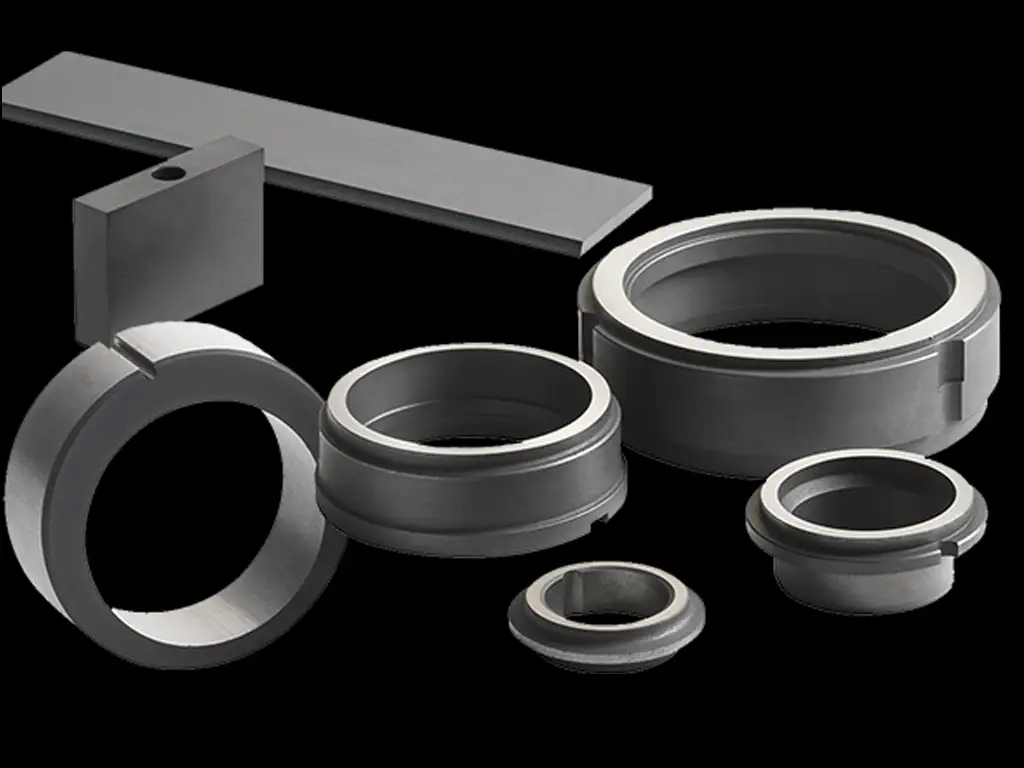

These faces are typically made from carbon or carbon-graphite materials, chosen for their self-lubricating properties and ability to withstand high temperatures and aggressive chemicals.

How Do Carbon Mechanical Seals Work?

The operation of carbon mechanical seals hinges on the creation of a tight, low-friction seal between the rotating and stationary faces. When installed, the carbon seal is positioned between a stationary and a rotating component, such as a pump shaft and housing. As the rotating component moves, the carbon seal maintains contact with the stationary surface, preventing fluid from escaping the system.

Key factors contributing to the seal's effectiveness include:

Self-Lubrication: The carbon material's inherent properties reduce friction between the sealing faces.

Spring Mechanism: A spring-loaded mechanism maintains a constant sealing force against the mating surface, compensating for wear or dimensional changes over time.
Cowseal

Precision Manufacturing: Ensures a close fit between the seal and the mating surfaces, minimizing leakage paths.
Cowseal

Advantages of Carbon Mechanical Seals

Carbon mechanical seals offer several benefits that make them suitable for various industrial applications:

Chemical Resistance: They exhibit exceptional chemical resistance, allowing them to withstand exposure to a wide range of aggressive fluids and chemicals.
Cowseal

Temperature Stability: Carbon seals maintain their sealing properties across a broad temperature range, from cryogenic temperatures to high-heat environments.
Cowseal

Low Friction: The inherent low friction properties of carbon materials result in reduced frictional losses during operation, leading to improved energy efficiency.
Cowseal

Durability: Carbon seals are known for their durability and long service life, reducing the frequency of seal replacements and associated maintenance costs.
Cowseal

Applications of Carbon Mechanical Seals

Due to their versatile properties, carbon mechanical seals are employed across various industries:

Chemical Processing: Handling aggressive chemicals and solvents.

Pharmaceuticals: Maintaining sterile conditions in mixers and reactors.

Power Generation: Sealing systems in turbines and pumps.

Water Treatment: Ensuring leak-free operation in pumps and compressors.

Maintenance and Troubleshooting

Proper maintenance is essential to ensure the longevity and efficiency of carbon mechanical seals:

Regular Inspection: Check for signs of wear, cracks, or surface damage.

Lubrication: Ensure adequate fluid film between seal faces to prevent dry running.

Alignment: Maintain proper shaft alignment to avoid uneven wear.

Operating Conditions: Monitor temperature and pressure to stay within seal specifications.

Addressing issues promptly can prevent seal failure and equipment downtime.

Conclusion

Carbon mechanical seals are integral components in preventing fluid leakage in rotating equipment. Their unique properties, such as self-lubrication, chemical resistance, and temperature stability, make them suitable for demanding industrial applications. Understanding their construction, working principles, and maintenance requirements ensures optimal performance and longevity.

Frequently Asked Questions


1. What is a carbon mechanical seal?
A carbon mechanical seal is a type of seal that uses carbon graphite as the rotating seal face, typically paired with a harder material like ceramic or silicon carbide. It helps prevent leakage in rotating equipment by maintaining a tight seal between moving and stationary components.

2. Why is carbon used in mechanical seals?
Carbon is used in mechanical seals due to its excellent self-lubricating properties, low friction, high chemical resistance, and ability to withstand thermal stress. These qualities make it ideal for both wet and dry running conditions in pumps and mixers.

3. How do carbon mechanical seals prevent leakage?
Carbon mechanical seals prevent leakage by pressing a flat carbon surface against a stationary seal face. A thin fluid film forms between the faces, minimizing direct contact while sealing the internal fluid from escaping.

4. What are the common reasons for carbon seal failure?
Common causes of failure include dry running, improper installation, thermal shock, contamination, and using incompatible materials for the sealing environment. Regular maintenance and proper handling can prevent premature seal failure.

5. In which industries are carbon mechanical seals commonly used?
Carbon mechanical seals are widely used in industries like pharmaceuticals, food processing, chemical manufacturing, water treatment, and oil & gas—especially in centrifugal pumps, compressors, reactors, and mixers.
