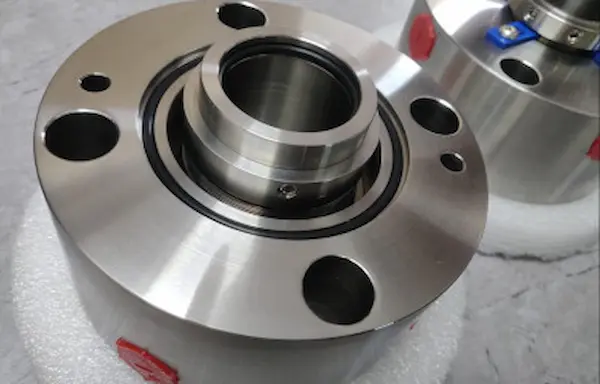

Mechanical Seals for High Temperature Applications

Industrial systems often operate under challenging conditions, and high temperature is one of the most demanding factors for rotating equipment like pumps, mixers, and compressors. In these cases, the performance and safety of the system heavily rely on the efficiency of the mechanical seal used.

This blog explores everything you need to know about mechanical seals for high temperature applications, including types, material choices, and design features that ensure long-lasting and leak-free operation in elevated temperatures.

What Are High Temperature Mechanical Seals?

Mechanical seals are devices used to prevent leakage between a rotating shaft and the stationary part of a machine. When equipment operates at high temperatures — typically above 200°C — traditional sealing materials often fail. That’s where high-temperature mechanical seals come into play.

These seals are specially engineered with heat-resistant materials and reinforced designs to handle thermal stress, reduce wear, and maintain a stable seal under extreme conditions.

Why High Temperature Sealing Matters

In environments involving heat-intensive processes, the wrong seal can lead to:

Fluid leakage

Seal face damage

Premature failure

Unscheduled downtime

Choosing the right high temperature seal ensures operational reliability, protects workers and the environment, and reduces maintenance costs. Industries like oil and gas, chemical processing, power generation, and food manufacturing often require such robust sealing systems.

Key Materials Used in High Temperature Seals

High temperature mechanical seals are built using specialized materials that maintain strength and performance under heat. These include:

Seal Faces: Silicon carbide, tungsten carbide, graphite, or ceramic

Elastomers: Viton®, Kalrez®, FFKM, Aflas®

Secondary Seals: Graphite packing or metal bellows for O-ring replacements

Metal Components: Stainless steel, Hastelloy®, Inconel® (for high thermal resistance)

Each material is chosen based on the specific fluid properties, temperature range, and chemical compatibility.

Types of Mechanical Seals for High Temperature Applications

1. Metal Bellows Seals

Metal bellows seals are ideal for extreme heat because they use a welded metal bellows instead of rubber-based secondary seals. These seals provide flexibility without degradation, making them perfect for handling hot oils, steam, and aggressive chemicals.

Common uses: Chemical reactors, hot oil systems, high-pressure steam lines.

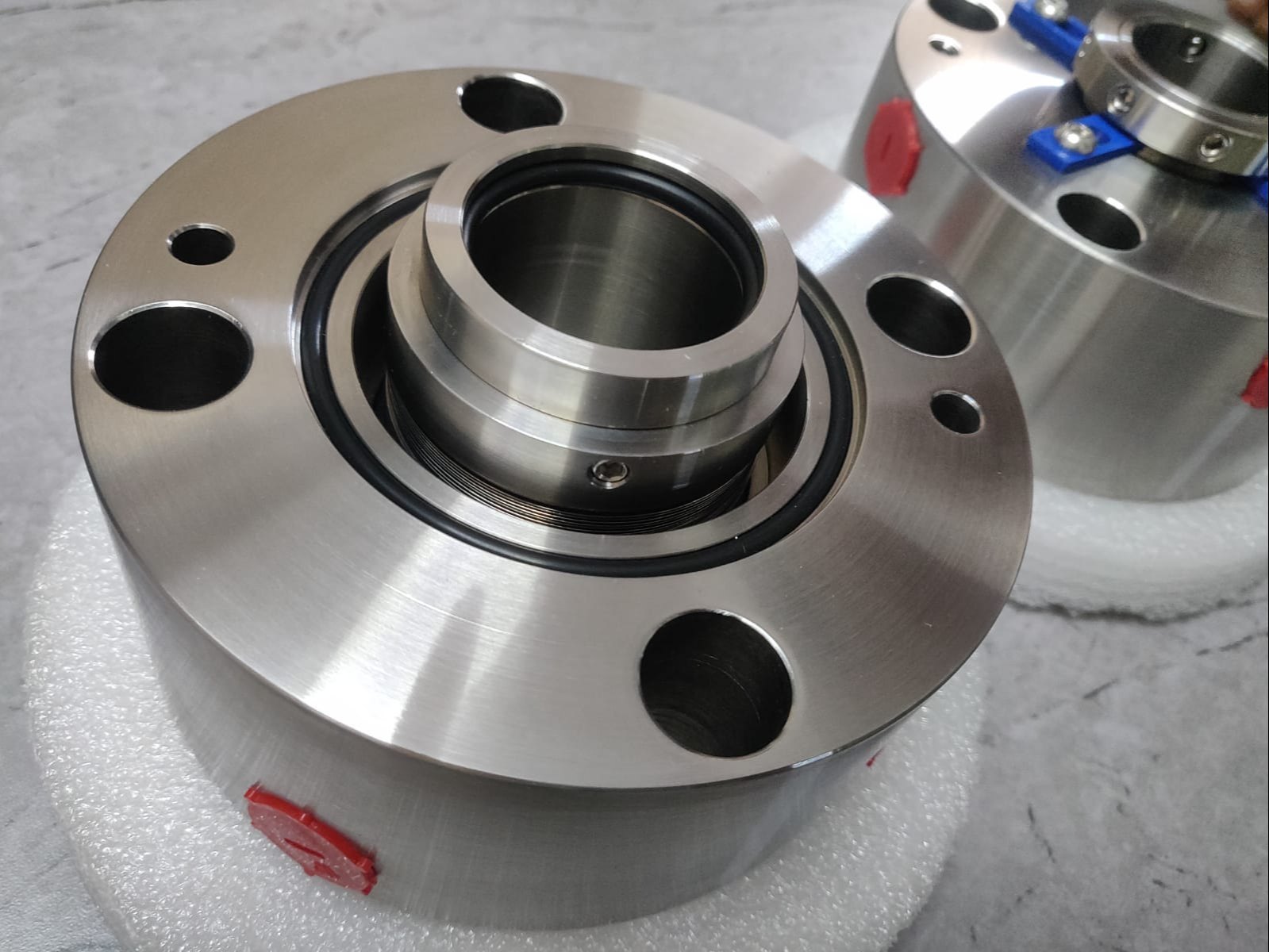

2. High Temperature Cartridge Seals

Cartridge seals designed for heat-intensive applications come pre-assembled with heat-resistant components. They are easy to install and replace, reducing the chances of installation errors in high-risk environments.

Common uses: Refineries, petrochemical pumps, and industrial mixers.

3. Balanced Mechanical Seals

Balanced seals distribute the sealing pressure more evenly across the seal faces. This reduces heat buildup due to friction — an essential feature in high-temperature systems.

Common uses: Boiler feed pumps, turbine lubrication systems.

4. Dual Seals with Cooling Systems

Some high-temperature seals are designed as dual mechanical seals and require a barrier fluid or cooling system to maintain temperature stability. This ensures longer seal life and enhanced safety.

Common uses: Explosive or volatile fluid systems, high-speed pumps.

Applications That Require High Temperature Mechanical Seals

Oil Refineries: For crude and process oil handling

Power Plants: Pumps in turbine and boiler systems

Chemical Plants: Reactors and high-temperature chemical pumps

Food & Beverage: Sterilization and cooking equipment

Pharmaceuticals: Clean and temperature-controlled mixing systems

Each application requires a specific seal design to manage both temperature and fluid characteristics effectively.

How to Choose the Right Seal for High Temperature Environments

When selecting a seal for high-temperature conditions, consider the following:

Temperature range: Know the maximum and continuous operating temperatures.

Fluid type: Acidic, flammable, or viscous fluids may affect seal material choice.

Pressure: Higher temperatures often come with elevated pressure levels.

Pump speed and shaft size: Affects heat generation and face wear.

Cooling options: Ensure compatibility with external flush or cooling systems.

Collaborating with a sealing expert like QMSeals ensures you get the right fit for your specific conditions.

Benefits of Using High Temperature Mechanical Seals

Prevents equipment failure due to seal degradation

Enhances system safety in critical operations

Reduces maintenance and replacement frequency

Increases pump or system uptime

Helps meet environmental compliance standards

Conclusion

High temperature environments demand more than just standard components — they require seals that are engineered to perform under pressure, heat, and chemical exposure. Mechanical seals for high temperature applications are the backbone of many industrial operations, protecting critical systems from costly leaks and failures.

At QMSeals, we design and supply advanced sealing solutions tailored for high temperature and high performance. Whether you need a metal bellows seal for a chemical plant or a high-temperature cartridge seal for a boiler pump, our experts can help you find the perfect fit for your needs.

Frequently Asked Questions

1. What is the maximum temperature a mechanical seal can handle?
Some high-performance seals can operate at temperatures above 400°C, depending on the materials used.

2. Can I use a standard seal for high temperature pumps?
No. Standard seals may fail due to heat degradation. Specialized seals are necessary for high-temperature applications.

3. What elastomer is best for high temperature sealing?
Materials like Viton®, Kalrez®, and FFKM are widely used for their superior heat resistance.

4. Are cooling systems necessary for high temp seals?
Yes, in many cases. External cooling helps protect the seal faces and prolong seal life.

5. Does QMSeals offer custom high temperature seals?
Absolutely. We offer custom-engineered solutions to suit your operating environment, industry, and fluid type.
