Differences Between Mechanical Seals and Rubber Seals

In the world of sealing solutions, selecting the right type of seal is critical to ensuring system efficiency, preventing leakage, and extending equipment life. Two commonly used seal types in various industrial applications are mechanical seals and rubber seals. While both serve the purpose of sealing, they are vastly different in terms of design, performance, application, and durability.

In this blog, we’ll break down the key differences between mechanical seals and rubber seals, helping you make the right choice based on your operational needs.

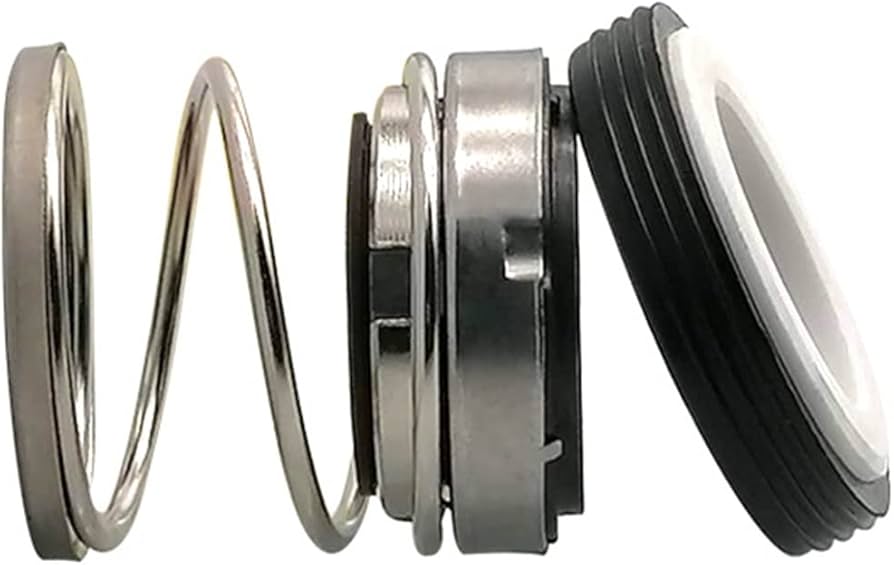

What Are Mechanical Seals?

Mechanical seals are precision-engineered components used to prevent fluid leakage between rotating parts, such as a pump shaft and the pump housing. They consist of a combination of sealing faces—typically a rotating face and a stationary face—held together under pressure with the help of springs and secondary sealing elements like O-rings or bellows.

Key Features:

Used in high-pressure, high-speed rotating equipment

Made from materials like carbon, silicon carbide, and tungsten carbide

Can be single or double seals, balanced or unbalanced

Ideal for handling corrosive, abrasive, and high-temperature fluids

What Are Rubber Seals?

Rubber seals, also known as elastomeric seals, are made from flexible rubber-based materials and are commonly used to seal static or low-dynamic components. These seals are available in various types, such as O-rings, gaskets, lip seals, and grommets, and are typically found in plumbing, automotive, and low-pressure systems.

Key Features:

Made from materials like Nitrile (NBR), EPDM, Silicone, Viton, etc.

Best suited for static sealing or slow-moving applications

Easy to install and cost-effective

Good for sealing air, water, and low-viscosity fluids

Mechanical Seals vs. Rubber Seals: Key Differences

Let’s explore the main differences between the two seal types based on critical parameters:

1. Design & Construction

Mechanical Seals: Complex design with multiple components including seal faces, spring systems, secondary seals, and gland plates.

Rubber Seals: Simple design, typically one-piece rubber rings or profiles molded for specific applications.

🛠️ Verdict: Mechanical seals are more advanced and engineered for precise performance, while rubber seals are basic and functional for less demanding applications.

2. Application Type

Mechanical Seals: Primarily used in dynamic sealing systems like pumps, agitators, mixers, and compressors, where the shaft rotates or moves continuously.

Rubber Seals: Mostly used in static applications like pipe joints, valve covers, or between flanges. Can handle slow rotational movements in some cases.

🛠️ Verdict: Mechanical seals are essential for rotating equipment. Rubber seals are suitable for static or low-dynamic interfaces.

3. Temperature and Pressure Resistance

Mechanical Seals: Designed to operate under high temperatures and high-pressure environments. They can handle corrosive and hazardous fluids.

Rubber Seals: Limited to moderate temperatures and low to medium pressures depending on the rubber compound used.

🛠️ Verdict: Mechanical seals are preferred for industrial environments with challenging operating conditions.

4. Sealing Performance

Mechanical Seals: Offer superior sealing performance with minimal leakage, even in high-speed or high-load equipment.

Rubber Seals: Provide basic sealing and are more prone to wear, compression set, and degradation over time.

🛠️ Verdict: Mechanical seals are more reliable in the long run, especially in critical operations.

5. Durability & Lifespan

Mechanical Seals: Long-lasting if properly installed and maintained; often run for thousands of hours before requiring replacement.

Rubber Seals: Shorter lifespan; prone to cracking, swelling, and hardening under continuous exposure to chemicals or temperature changes.

🛠️ Verdict: Mechanical seals win when it comes to long-term durability.

6. Cost

Mechanical Seals: Higher initial cost due to precision design and materials, but offer better ROI in high-performance applications.

Rubber Seals: Cost-effective and economical for basic sealing needs.

🛠️ Verdict: Rubber seals are more affordable upfront, but mechanical seals provide better value in critical systems.

7. Maintenance and Replacement

Mechanical Seals: Require trained personnel for installation and alignment. Downtime during replacement is longer.

Rubber Seals: Easy to replace without specialized skills or tools.

🛠️ Verdict: Rubber seals are easier to maintain, but mechanical seals require expert handling for optimal performance.

Which One Should You Choose?

Your choice between mechanical seals vs. rubber seals should depend on:

Applications of Mechanical and Rubber Seals

🔧 Mechanical Seals:

• Centrifugal pumps
• Agitators & mixers
• Compressors
• Reactors & autoclaves
• High-pressure rotating machinery

🔩 Rubber Seals:

• Pipe joints and flanges
• Automotive hoses and fittings
• Hydraulic and pneumatic systems
• Domestic plumbing
• Static machinery enclosures

Conclusion

While rubber seals are cost-effective and practical for general sealing tasks, mechanical seals are the go-to solution for demanding industrial applications that involve high speed, high pressure, or aggressive media.

At QMSeals, we offer a wide range of both mechanical seals and custom rubber sealing solutions to suit your specific process requirements. Whether you're running a high-performance pump or just need to prevent leaks in a pipeline, we have the right seal for you.

Frequently Asked Questions

What is the difference between mechanical seal and rubber seal in pumps?
Mechanical seals are designed for rotating shafts and offer high-performance sealing in pumps, while rubber seals are better suited for static joints and low-pressure applications.

Which is more reliable: mechanical seal or rubber seal?
Mechanical seals are more reliable for high-pressure and high-speed systems, especially in industrial environments, whereas rubber seals are more suitable for simple, static applications.

Can a rubber seal be used in high-temperature applications?
Most rubber seals have limited temperature resistance and can degrade under high heat. Mechanical seals made with advanced materials like carbon or silicon carbide are better for high-temperature use.

Are mechanical seals reusable after maintenance?
Some mechanical seals can be refurbished or reused depending on wear and damage, but typically they are replaced during major maintenance cycles for reliability.

Why are mechanical seals preferred in industrial equipment?
Mechanical seals provide superior leak prevention, durability, and performance in harsh conditions, making them ideal for pumps, mixers, and other dynamic industrial machinery.
