Difference Between Cartridge And Non-Cartridge Mechanical Seal

Mechanical seals are significant parts of industrial equipment, especially in pumps, to avoid leakage and facilitate efficient operations. The two major forms of mechanical seals are cartridge mechanical seals and non-cartridge mechanical seals. Identifying the contrast between cartridge and non-cartridge mechanical seals is important when making a selection for an application. This article discusses the two kinds of mechanical seals, their strengths and weaknesses, and their applications in detail.

Understanding Mechanical Seals

A mechanical seal is a mechanism that assists in bringing two systems or mechanisms together to seal against leakage. It is made up of a rotating component and a stationary component, which function together to create a tight seal. Mechanical seals are used extensively in pumps, mixers, and compressors to seal fluids and avoid contamination.

What is a Cartridge Mechanical Seal?

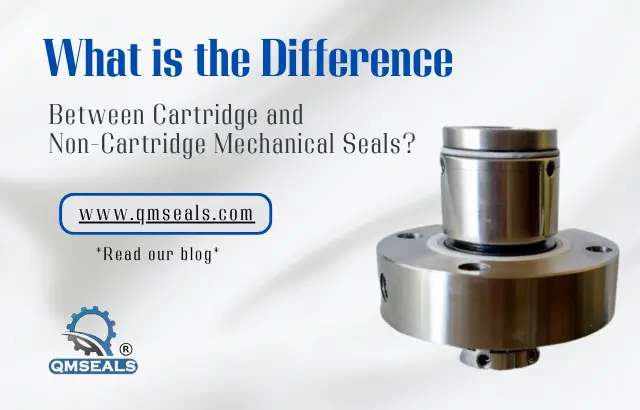

A cartridge mechanical seal is a pre-assembled device that contains all the sealing parts, which are the gland, sleeve, and seal faces. It is intended to be easily installed and replaced, minimizing the occurrence of mistakes.

Benefits of Cartridge Mechanical Seals:

Simple Installation: Pre-assembled, less technical skill needed.
Less Errors: Prevents installation mistakes since there is no requirement to set the seal faces manually.
Less Downtime: Fast replacement results in minimum downtime.
Pre-Set Factory Alignment: Reduces manual adjustments, guaranteeing peak performance.
Longer Lifespan: Factory-tested parts and correct alignment result in longer durability.

What is a Non-Cartridge Mechanical Seal?

A non-cartridge mechanical seal, commonly called a no-cartridge seal, is one whose individual components, including the seal faces, springs, and glands, are assembled individually. It is a manual-set seal that must be carefully aligned when installed.

Benefits of Non-Cartridge Mechanical Seals:

Lower Upfront Cost: Less expensive compared to cartridge mechanical seals.
Space-Saving Design: Takes up less space, which makes it ideal for smaller equipment.
Greater Flexibility: Can be customized to meet particular needs.
Disadvantages of Non-Cartridge Mechanical Seals
Complex Installation: Needs exact alignment and accurate setting of the seal faces.
Higher Risk of Errors: Faulty installation will result in premature failure and leakage.
More Maintenance: Regular adjustments and maintenance can be necessary.

Applications of Non-Cartridge Mechanical Seals:

Small-scale industrial pumps
General-purpose fluid transfer
Agricultural and irrigation pumps

The Difference Between Cartridge and Non-Cartridge Mechanical Seals:

The major difference between cartridge mechanical seals and non-cartridge mechanical seals is the design and the installation process. Cartridge mechanical seals are pre-assembled, and all the sealing components are included, making it easy to install and reducing the chances of installation errors significantly. They are made to be easily handled and replaced, allowing for less downtime and higher operating efficiency. The pre-set alignment of the factory also guarantees consistent performance, and thus they are perfect for applications where precision and ruggedness are important.

Alternatively, non-cartridge mechanical seals are more technically demanding to install because they involve manual assembly and accurate alignment of individual components like seal faces, springs, and glands. Installation is more difficult as the seal needs technical expertise and careful adjustment. There is greater potential for error during installation, and improper alignment may cause seal failure or leakage earlier than anticipated.

Cost-wise, cartridge mechanical seals are more expensive to purchase initially because they are pre-assembled and factory-tested. They save on maintenance time and installation complexity, though, and thus cost less in the long term. Non-cartridge mechanical seals, being cheaper to buy, are more frequently in need of maintenance and monitoring because they can be prone to misalignment and wear with time.
Space factors also come into play when choosing the right mechanical seal. Cartridge seals are bulkier and need more space for installation, while non-cartridge seals are compact and ideal for use in applications where space is limited.

Customization is yet another differentiator. Non-cartridge mechanical seals are more adaptable in design and customization, with industries able to customize them according to certain uses. On the other hand, cartridge mechanical seals have a standard design that is less accommodating when it comes to customization.

On the application end, cartridge mechanical seals are commonly applied in heavy-duty applications like oil and gas, chemical processing, power generation, and wastewater treatment because of their strong build and reliability. Non-cartridge mechanical seals are more applicable for general-purpose use, small industrial pumps, and farm fluid transfer systems where budget is a concern as well as customization requirements. Making the Decision Between Cartridge and Non-Cartridge Mechanical Seals

When selecting the right mechanical seal, consider the following factors:

Operational Requirements: If minimal downtime and easy installation are priorities, a cartridge mechanical seal is the best option.
Budget Constraints: If cost is a concern, a non-cartridge mechanical seal is a more economical choice.
Equipment Size: For space-limited applications, non-cartridge seals are better suited.
Maintenance Capabilities: Companies that have trained technicians might prefer non-cartridge seals, while those that require quick installation should prefer cartridge seals.

Conclusion:

Both cartridge mechanical seals and non-cartridge mechanical seals have their advantages and limitations. Cartridge seals are easy, minimizing installation errors and maintenance expenses, and thus suitable for big industries. Non-cartridge seals are economical and flexible but need to be installed accurately. Knowing the difference between cartridge and non-cartridge mechanical seals assists industries in making a correct choice based on their needs.

Frequently Asked Questions:

1.  What is the primary difference between cartridge and non-cartridge mechanical seals?

Cartridge mechanical seals are pre-assembled and easy to install, while non-cartridge mechanical seals require manual assembly and precise alignment.

2. Which type of mechanical seal is better for high-pressure applications?

Cartridge mechanical seals are better for high-pressure applications due to their robust construction and pre-set alignment.

3. Are cartridge mechanical seals more expensive than non-cartridge seals?

Yes, cartridge mechanical seals have a higher initial cost due to their pre-assembled components and factory-tested reliability.

4. Can I replace a non-cartridge seal with a cartridge seal?
In most cases, yes, but it depends on the pump design and space availability.

5. Do non-cartridge mechanical seals require more maintenance?
Yes, non-cartridge mechanical seals require frequent adjustments and maintenance compared to cartridge seals.
